Step 2 - Configure
RAS
-

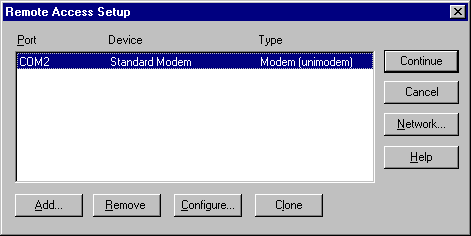

From the Network Control Panel, double click on Remote
Access Service and the screen shown in FIG 3
will appear. If no serial ports have been configured,
click on Add, otherwise select the appropriate serial
port and click on Configure.
FIG 3
-

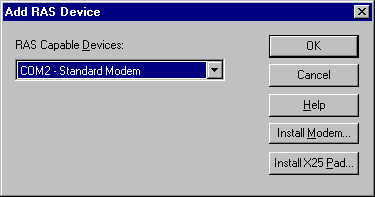

The screen shown in FIG 4 should appear. Select
a modem or click on Install Modem and follow the prompts.
fig 4
-
Click on OK to return to the Remote Access Setup screen
as seen in FIG 3
-
Now we have to set up RAS to dial out. Click on Configure.

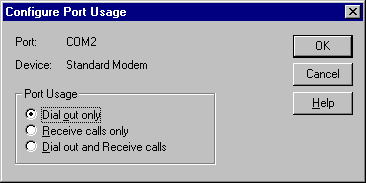

Select Dial out only as shown in FIG 5. You can
also use RAS to accept incoming calls but this is a
security risk. Click on OK to return to the Remote Access
Setup screen.
fig 5
-

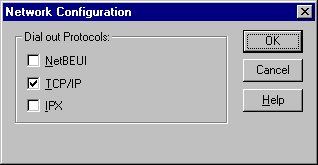

Click on Network and ensure that TCP/IP is selected
as shown in FIG 6. Click on OK and then click
on Continue. This will bring you back to the Network
Control Panel. Click on Close and select Yes when asked
to restart your machine.
fig 6
|
